The Collins handwound guitar pickups
Calibrated magnets and period correct pickups with progressive overwindings from neck to bridge. Wound with 42, 43 & 44AWG modern poly-nylon instead of Formvar or Enamled wire
for a higher tolerance to failure and a more consistent winding from pickup to pickup.Magnets were sealed with my own brand of sealer before winding for longer life.
Currently offering single coil Stratocaster, Tele style pickups, Gibson and Kramer style Humbuckers and other styles.

As always allow a littlle time for winding

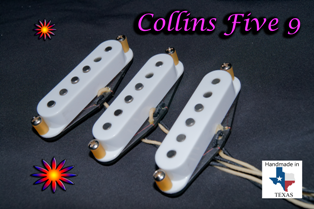

Five 9 T-159 Pickup set modeled after the late'50's single coil Strats Period correct black bottoms. Alnico 5 staggered magnets Neck: 5.95k Mid 6.33k Bridge: 6.47k scatter wound and wax potted. This pickup is wound a little hotter than the '69 and hits the amp a little harder. Description Note: These pickups are magnetized to period spec N-S-N if you planning on pairing with other pickups Price: $78.25 free shipping! Cover color White Black Cream	Road Kings T-175 Pickup set 7.5% progressively overwound Alnico 5 symmetrical staggered magnets Neck: 5.65k Mid: 6.23k Bridge: 6.47k scatter wound and wax potted. This pickup is wound hotter than the Five 9 or Blues Raider. Description Note: These pickups are magnetized to spec S-N-S if you planning on pairing with other pickups Price: $78.25 free shipping! Cover color White Black Cream	Blues Raider T-169 pickup set modeled after LATE '60's single coil Strats Period correct grey bottoms. Alnico 5 staggered magnets Neck: 5.75k Mid: 5.98k Bridge: 6.09k scatter wound and wax potted. This pickup is smooth as butter and dripping with articulate tone. Description Note: These pickups are magnetized to period spec S-N-S if you planning on pairing with other pickups Price: $78.25 free shipping! Cover color White Black Cream

Texas Tea T-168 Tele Pickup Set 16% progressively overwound Alnico 5 magnets Wound hot Neck: 7.20K Bridge: 7.28 K Description Note: These pickups are magnetized to spec South if you planning on pairing with other pickups Price $78.25 free shipping!	Wind Talker T-176 Pickup set 8.2% progressively overwound Alnico 5 non-staggered magnets Neck: 5.79k Mid: 5.99k Bridge: 6.34k scatter wound and wax potted. This pickup is will give more bass response than the Five 9 or Blues Raider. Description Note: These pickups are magnetized to spec S-N-S if you planning on pairing with other pickups Price $78.25 free shipping! Cover color White Black Cream	Rio Vista Heat T-178 Pickup set 16% progressivelyoverwound Alnico 5 staggered magnets Neck: 6.29k Mid6.79k Bridge: 7.46k scatter wound and wax potted. This pickup is hotter'n pepper puddin' Description Note: These pickups are magnetized to spec S-N-S if you planning on pairing with other pickups Price $78.25 free shipping! Cover color White Black Cream

free shipping!

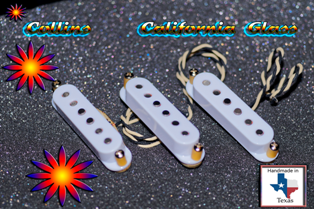

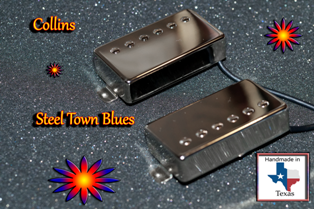

Steel Town Blues T-161 Over-wound Alnico 5 Neck 7.54 K  (4.34 Henries) Bridge 8.36 K (5.13 Henries) Description Price $82.96 free shipping!	California Glass T-166 Alnico 5/2 Hybrid Bridge Over 5%/NeckUnder 5% 5.39 K (neck) 2.13 Henries 5.72 K (mid) 2.41 Henries 5.95 K (bridge) 2.55 Henries Description Price $78.25 free shipping! Cover color White Black Cream	Old Time Guns ll T-167 Over/Under 5% over-wound Bridge 7.5% underwound neck 5.30 K (neck) 1.96 Henries 5.46 K (mid) 2.10 Henries 6.08 K (bridge) 2.64 Henries Description Price $78.25 free shipping! Cover color White Black Cream

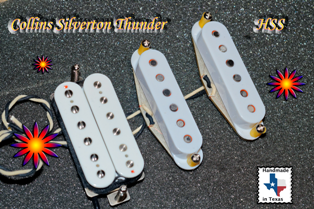

Silverton Thunder T-180 Progressively Over-wound Alnico 5 F-spaced HSS set Neck 6.38 K  (3.18 Henries) Mid 7.00 K (3.58 Henries) Bridge 8.55 K (4.80 Henries) Description Price $82.96 free shipping!	Excaliburs T-179 Over-wound Alnico 5 Neck 8.04 K  (4.66 Henries) Bridge 8.40 K (4.80 Henries) Description Price $82.96 free shipping!	Ranchita T-181 Hot Over-Wound F- spaced Zebra set Neck 15.29 K (8.93 Henries) Bridge 18.04 K (9.25 Henries) Description Price $82.96 free shipping!

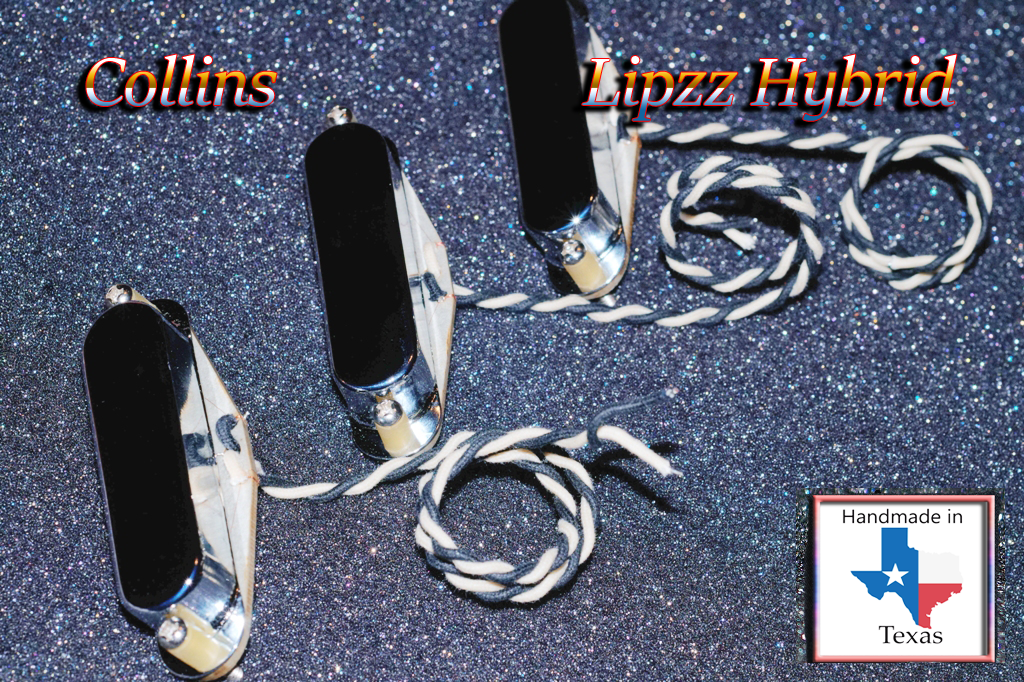

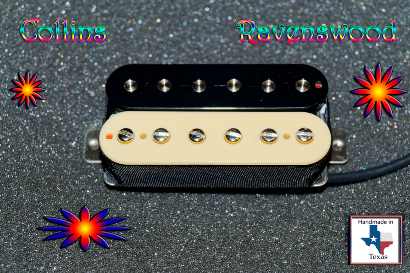

New Jazztone T-196 Jazz Bass pickup set Neck 8.12 K  (3.78 Henries) Bridge 8.24 K  (3.98 Henries) Description Price $78.25 free shipping! Cover color Black	F-spaced Ravenswood T-182 Bridge pickup Bridge 16.07 K (9.09 Henries) Description Price $40.25 free shipping	Lipzz Hybrid T-192 Neck 3.39 K (1.0 Henries) Mid 3.76 K (1.76 Henries) Bridge 4.79 K (2.02 Henries) Description Price $82.96 free shipping

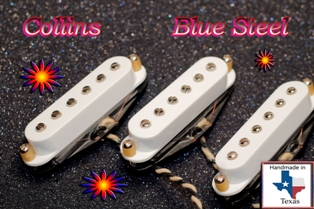

Steel Town II T-161 Over-wound Alnico 5 Neck 7.54 K  (4.34 Henries) Bridge 8.36 K (5.13 Henries) Description Price $82.96 free shipping Cover Color Nickel Gold	Blue Steel T-109 Ceramic 8 steel pole 8.33 K (neck) 4.00 Henries 9.04  K (mid) 4.66 Henries 9.66 K (bridge) 5.30 Henries Description Price $82.96 free shipping Cover color White Black Cream	Creekwood T-198 5.67 K (neck) 2.34 Henries 5.89 K (mid) 2.43 Henries 6.18 K (bridge) 2.76 Henries Description Price $78.25 free shipping!

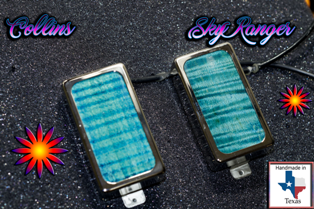

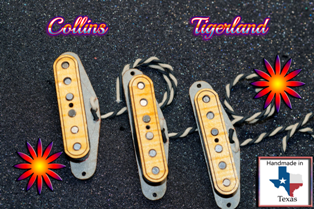

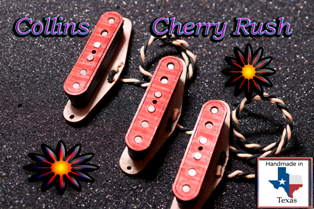

Tigerland T-100 7.64 K (neck) 2.38 Henries 8.09 K (mid) 2.48 Henries 8.49 K (bridge) 2.75 Henries Description Price $78.25 free shipping!	Cherry Rush T-199 5.63K (neck) 2.35 Henries 5.92K (mid) 2.47 Henries 6.12K (bridge) 2.59 Henries Description Price $78.25 free shipping!	Sky Ranger T-104 Over-wound Alnico 4 Neck 9.80 K  (5.98 Henries) Bridge 11.69 K (6.15 Henries) Description Price $82.96 free shipping!

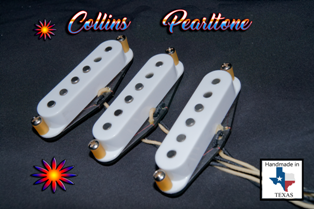

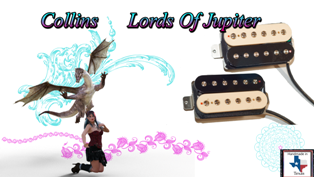

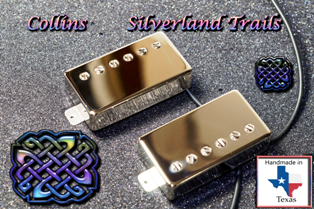

Pearltone T-105 7.52 K (neck) 2.65 Henries 7.61 K (mid) 2.74 Henries 7.72 K (bridge) 2.90 Henries Description Price $78.25 free shipping!	Silverland Trails T-107 Neck 7.57 K  (4.36 Henries) Bridge 8.57 K (5.36 Henries) Description Price $82.96 free shipping!	Lords Of Jupiter T-122 Neck 12.25 K  (4.69 Henries) Bridge 17.51 K (7.72 Henries) Description Price $82.96 free shipping!

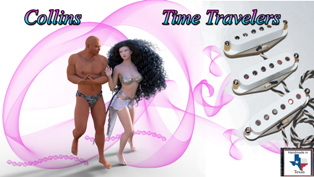

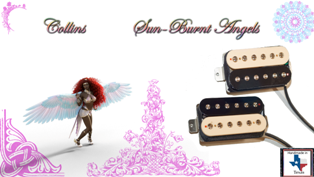

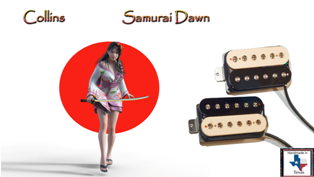

Sun-Burnt Angels T-173 Neck 11.22 K  (4.32Henries) Bridge 13.42 K (6.82 Henries) Description Price $82.96 free shipping!	Time Travelers T-121 8.80 K (neck) 2.36 Henries 9.38 K (mid) 2.55 Henries 10.17 K (bridge) 3.02 Henries Description Price $78.25 free shipping!	Samurai Dawn T-183 Neck 7.81 K  (4.68 Henries) Bridge 8.80 K (5.78 Henries) Description Price $82.96 free shipping!

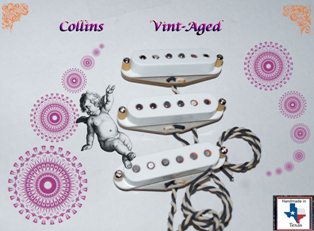

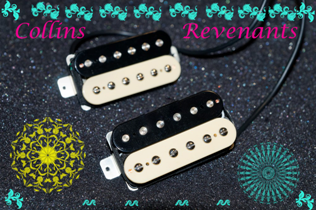

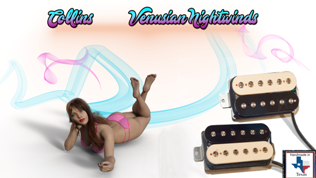

Vint-Aged T-106 Neck: 5.75K Mid: 5.98K Bridge: 6.09K Description Price $78.25 free shipping! Cover color White Black Cream	Venusian Nightwinds T-123 Hot Overwounds  Neck 13.34 K (4.51 Henries) Bridge 16.47 K (7.36 Henries) Description Price $82.96 free shipping!	Revenants T-124 Hot F Spaced Overwounds 13.42 K (neck) 5.92 Henries 17.14 K (bridge) 7.28 Henries Description Price $82.96 free shipping!
Trail Blazers T-160 6/4 Humbuckers 4% underwound neck and 6% overwound bridge Alnico 5 Magnets All Tone Neck 7.30 K Bridge 8.06 K Description Price $82.96 free shipping!

Note: Ohms readings change as the temperature rises and falls. Readings are given to show the approximate windings and output of each pickup.
